Asset Tracker

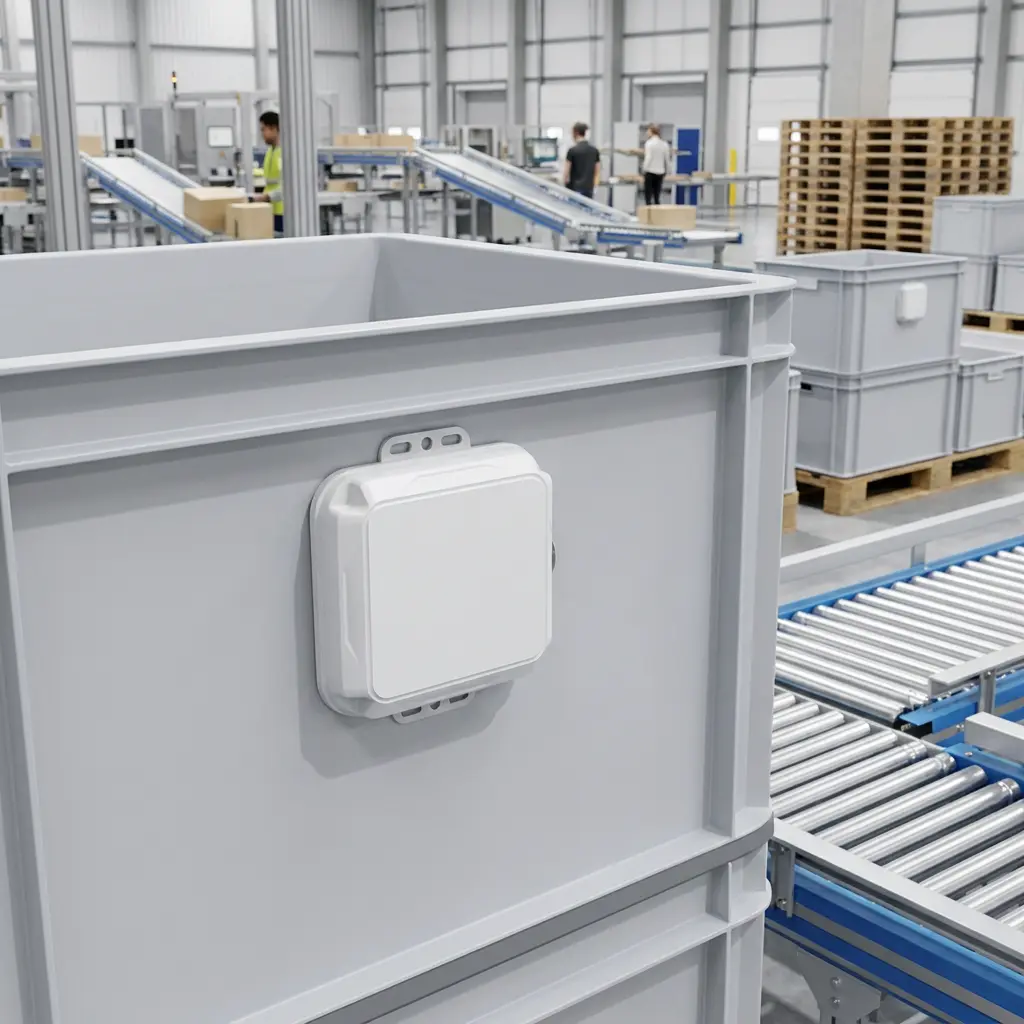

LoRa Asset Management Tracker
The LoRa Asset Management Tracker is a rugged tracker for reliable tracking, monitoring, and securing of valuable assets. With GNSS, Bluetooth 5.0, LoRaWAN technology, IP68 protection, tamper detection, and long battery life, the device is ideal for industrial assets, containers, transport boxes, and machinery.
Potential applications
01
Container Tracking
Track containers in real-time and receive information on routes, dwell times, and tampering events. LoRaWAN enables assets to be monitored over large areas without incurring traditional cellular costs.
02
Shipment Tracking
Locate transport boxes in the warehouse or during transit. Additionally, nearby Bluetooth tags can be reported to manage the contents of containers or transport cases more transparently.
03
Machine Status Monitoring
Monitor vibration levels, movement duration, and usage patterns of machines. This enables better planning of maintenance processes, understanding operating conditions, and faster detection of unwanted movements.
Asset Tracker
What makes the LoRa Asset Management Tracker special
Multi-Technology Positioning
GNSS enables reliable outdoor location determination, while Bluetooth 5.0 supports indoor positioning and detection of nearby Bluetooth tags.
Rugged IP68 Housing
The durable housing protects the device from dust, water, and demanding environmental conditions.
Long Battery Life
Two Li/SOCl2 batteries with 4,000 mAh each enable long-term deployments with thousands of position reports.
Tamper and Door Detection
The device detects tampering events as well as door opening and closing events, supporting better security of containers and transport goods.
Motion and Vibration Monitoring
Movement duration, vibrations, and shock events can be captured to better monitor machine conditions, usage patterns, and possible anomalies.
Offline Cache & FOTA
Up to 40 position data points can be cached when no network coverage is available. Firmware updates are supported via Bluetooth.
Complete Feature Set
The iDTRONIC IoT platform is a flexible real-time tracking solution for monitoring assets, shipments and locations. With custom dashboards, configurable alerts and data export, the platform can be adapted precisely to your operational requirements.
.webp)
.webp)
.webp)
Dashboard Visualisations
Data is displayed in clear, large-format elements such as graphs, tables and statistics. Thanks to drag-and-drop functionality, each element can be quickly adapted to your needs. All dashboards are also accessible from mobile devices.
Easy Device and Data Management
Manage your entire device fleet directly through the platform. Battery status, charge level, and recording and transmission intervals can be easily monitored and configured. All data points can be exported as CSV files and filtered by location, device, or sensor value.
Data is displayed in clear, large-format elements such as graphs, tables and statistics. Thanks to drag-and-drop functionality, each element can be quickly adapted to your needs. All dashboards are also accessible from mobile devices.
Configure Alerts
Set up intelligent alerts in just a few clicks and keep the right people informed via browser, email, or SMS. Receive instant notifications for threshold deviations, geofence events, low battery levels, and unexpected device activity.
Specifications
Product Specifications
The LoRa Asset Management Tracker is a rugged tracker for monitoring valuable assets in industrial and logistics applications.
The device combines GNSS for outdoor location, Bluetooth 5.0 for indoor positioning, and LoRaWAN for energy-efficient data transmission over long distances. The IP68-certified housing, two 4,000 mAh Li/SOCl2 batteries, tamper detection, door status monitoring, vibration and shock detection, as well as the offline cache, make the tracker a reliable solution for containers, machinery, transport boxes, and critical inventory.
Connectivity: LoRaWAN, Bluetooth 5.0
LoRaWAN Protocol: 1.0.2B, Class A
Activation Mode: OTAA or ABP
LoRa Frequencies: US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470
LoRa TX Power: 0 to 20 dBm
LoRa Sensitivity: -137 dBm at SF12, bandwidth 125 kHz, 868 MHz / 915 MHz
LoRa Communication Range: >1 km in urban areas
Encryption: AES128
Bluetooth Protocol: Bluetooth 5.0, iBeacon
Bluetooth TX Power: -20 to +4 dBm, configurable in 4 dBm steps
Bluetooth Sensitivity: -96 dBm
Positioning: BDS; GPS; GLONASS
GNSS Position Accuracy: <2.5 m CEP
GNSS Cold Start: 30 to 60 s
Battery: 2 × Li/SOCl2 4,000 mAh
GNSS Position Reports: Approx. 30,000 times at a reporting interval >10 minutes
Bluetooth Positioning: Approx. 500,000 times
Standby Current: 15 μA
Maximum Current: 145 mA
Dimensions: 78 × 79 × 35 mm with mounting lugs, 78 × 66 × 35 mm without mounting lugs
Weight: 133 g
Housing Material: ABS and PC
PCB Coating: Waterproof coating
IP Rating: IP68
Operating Temperature: -45 °C to +85 °C
Storage Temperature: -60 °C to +90 °C
Operating Humidity: 5% to 95%; non-condensing
Position Reporting Interval: Adjustable, 5 s × n, 1 to 65,536
Heartbeat Reporting Interval: Adjustable, 30 s × n, 1 to 65,536
Switch: Mechanical
Temperature Reporting: Optional; specify when ordering
Temperature Sensor Range: -40 °C to +85 °C
Temperature Accuracy: ±5 °C in beacon
Temperature Resolution: 0.25 °C
Sensors: 3-axis accelerometer, tamper detection, door open/close sensor, vibration and shock detection
Offline Cache: 40 positions
FOTA: Via Bluetooth
NFC Tag: 1 KB
Application Area: Asset Tracking, Container Tracking, Shipment Tracking, Machine Monitoring, Industrial Asset Management
