Mobile data collection with keypad

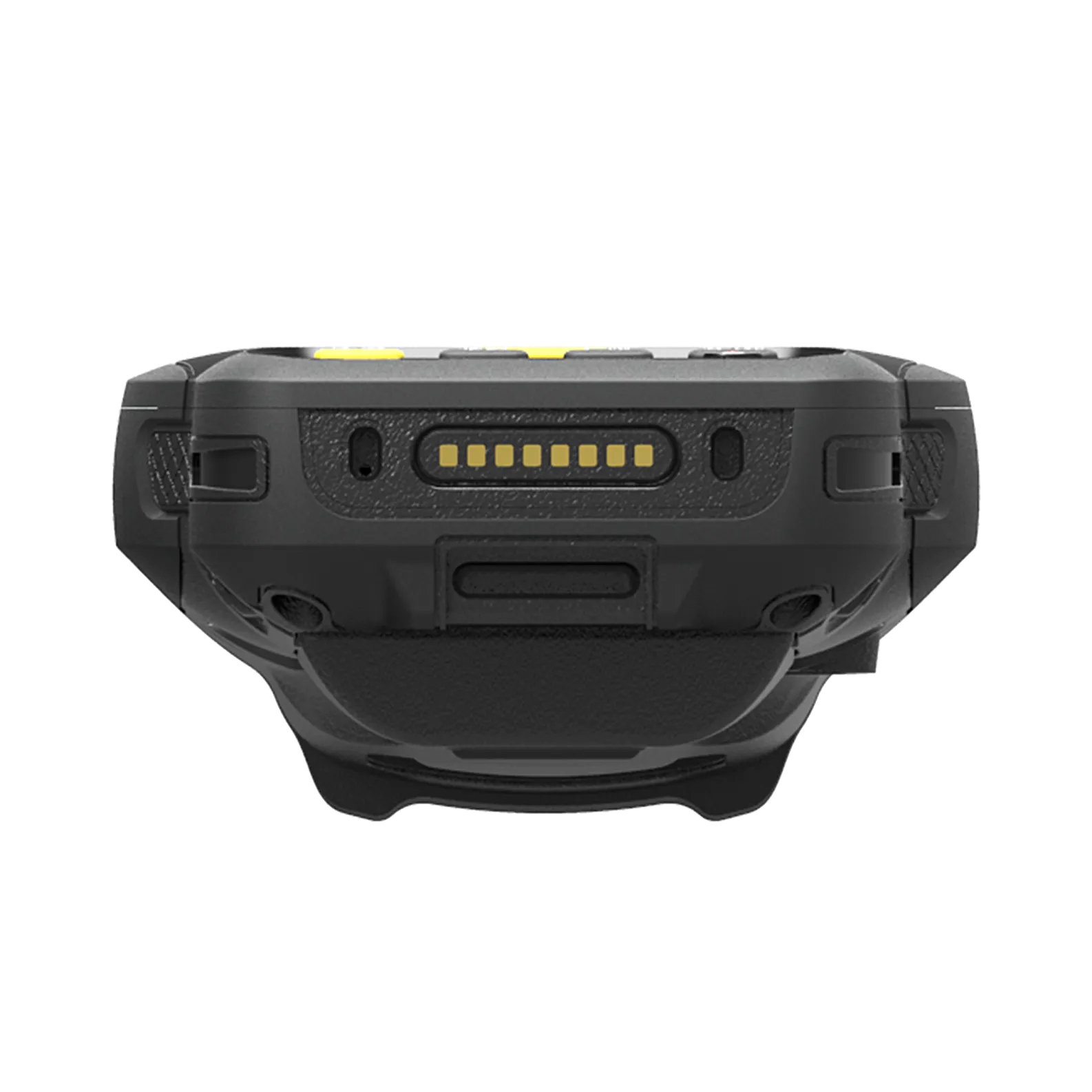

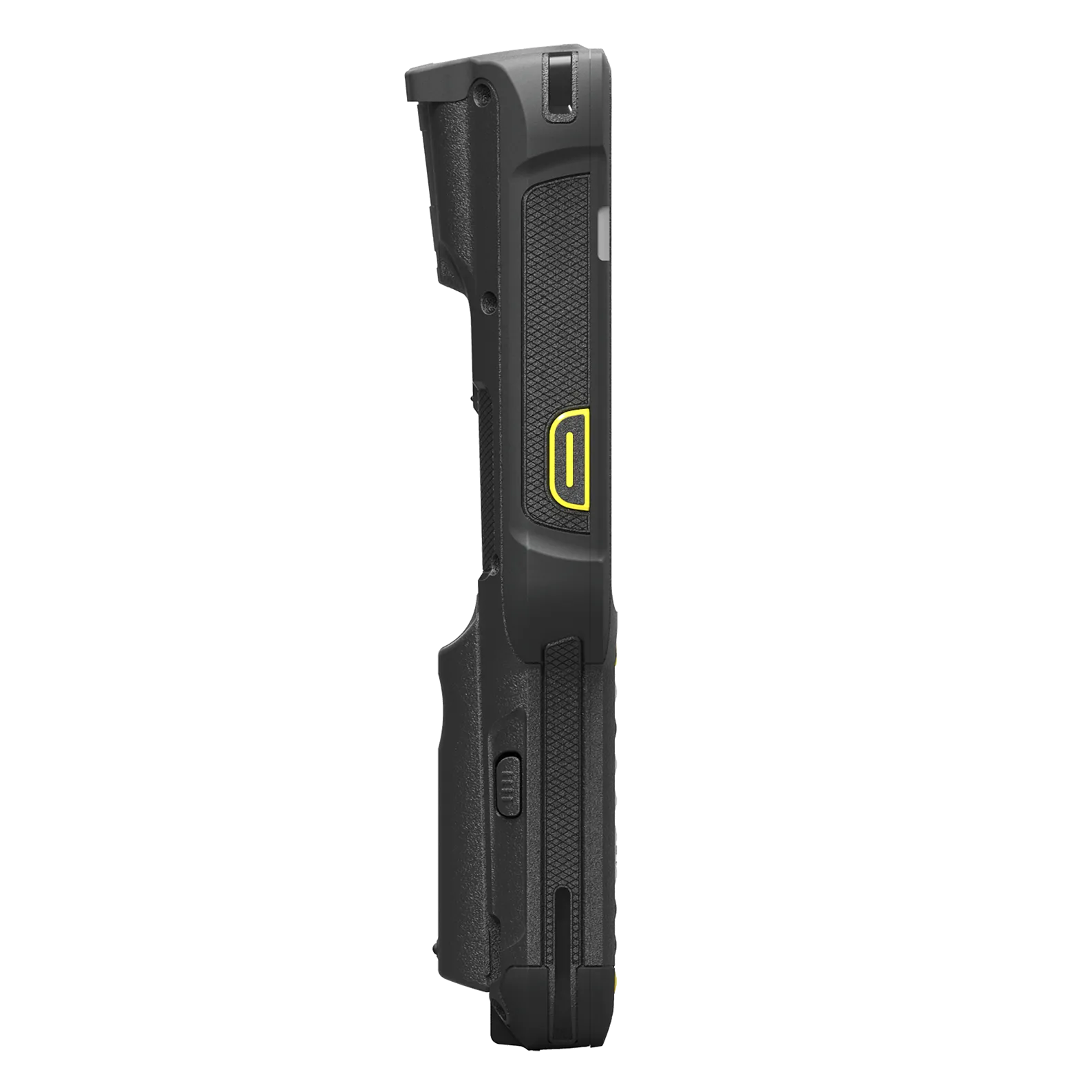

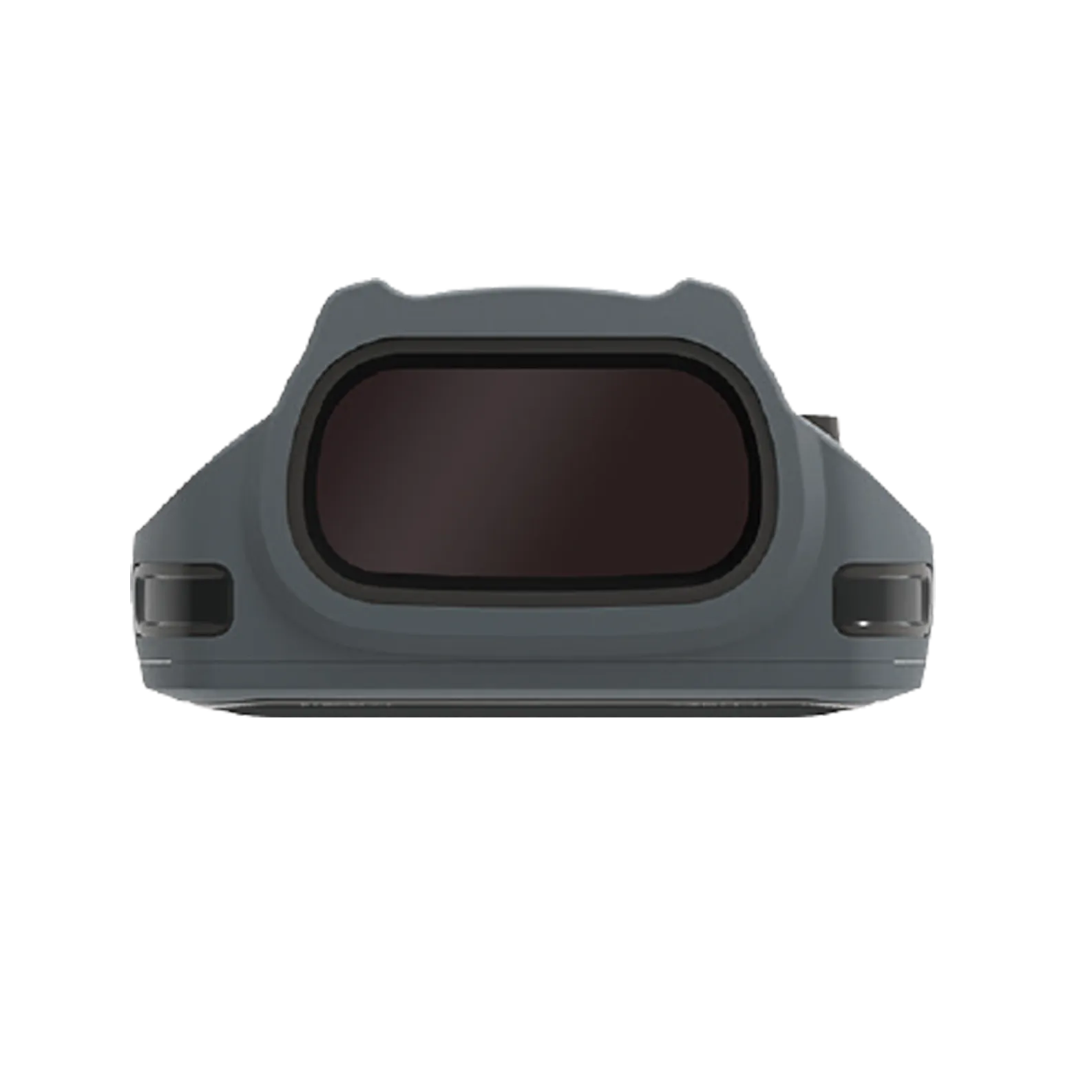

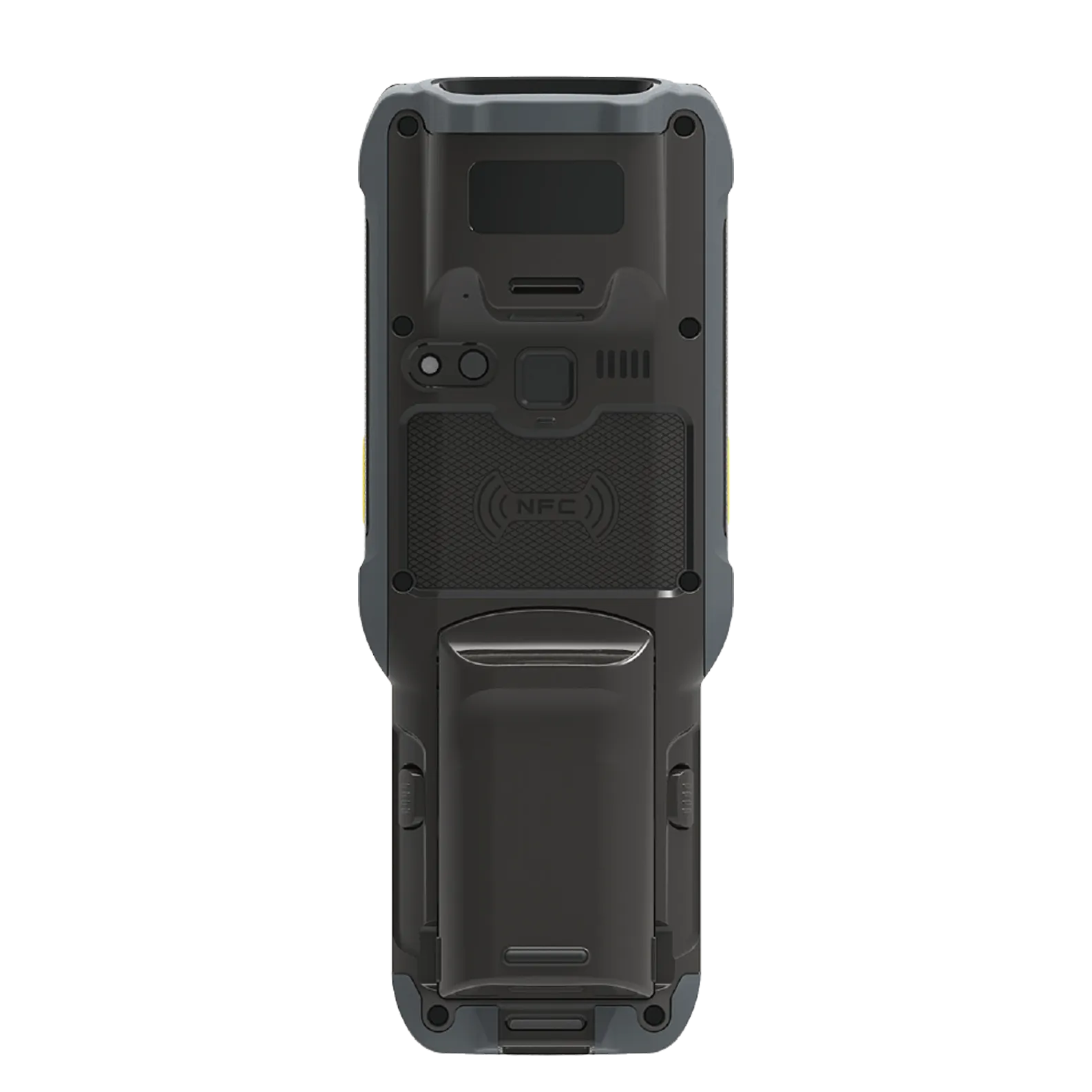

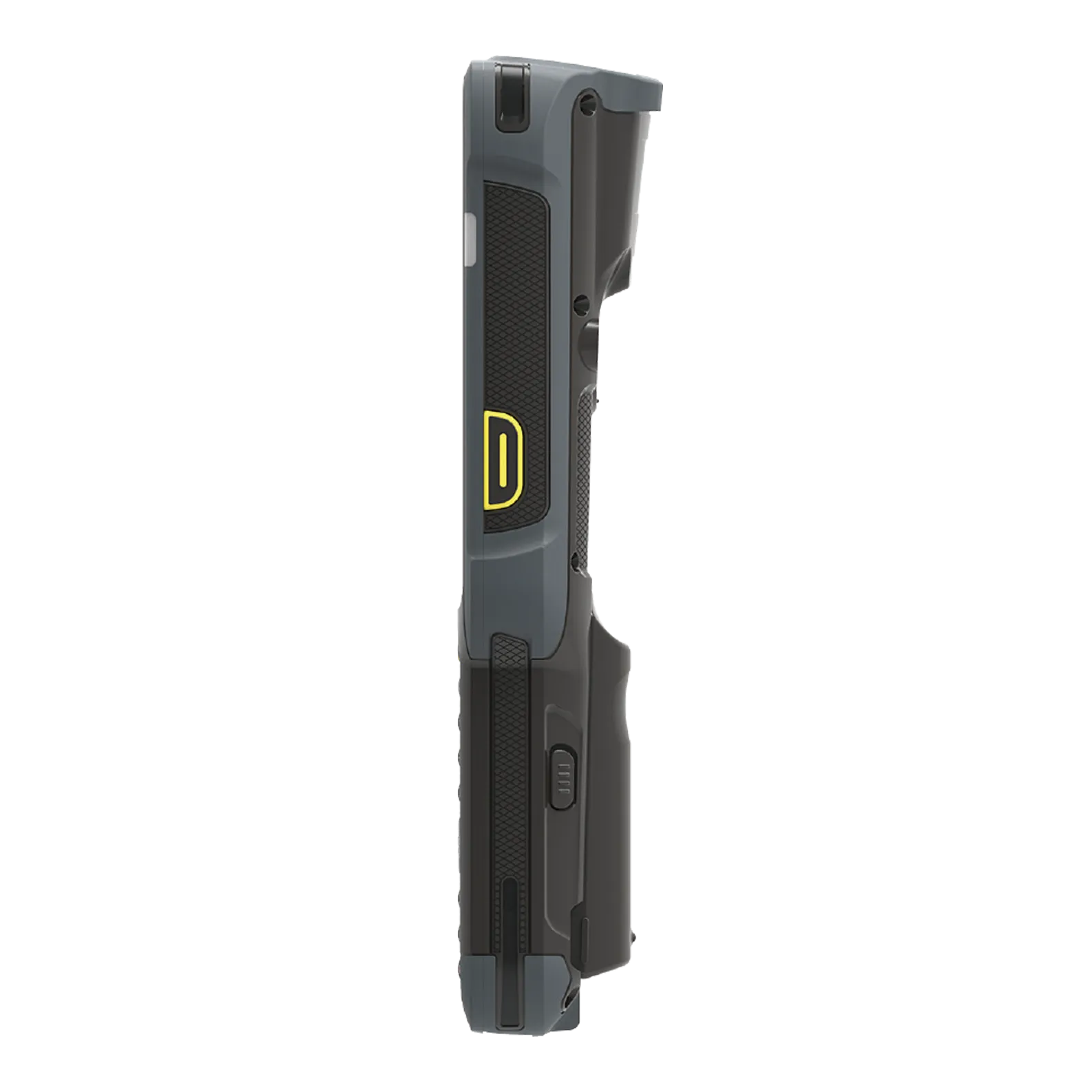

X20 Mobile Computer
The X20 Mobile Computer is a rugged mobile computer designed for professional barcode and NFC data collection. Featuring a high-performance 1D/2D barcode scanner, a 38-key keypad, and Android 14, it ensures efficient operation in warehousing, logistics, manufacturing, and retail. Optional features include long-range barcode scanning up to 15 meters and the ability to capture direct part marking (DPM) codes. The IP65-rated housing, swappable 6,200 mAh battery, and integrated backup battery ensure reliable mobile performance.
.png)
.png)
.png)
.png)
.png)
.png)
Highlights
Precise data collection in demanding work environments
Long-range barcode scanning
The professional scan engine captures a wide range of 1D and 2D barcodes. An optional feature allows for long-range scanning from distances of up to 15 meters.
38-key operation
The physical 38-key keypad supports fast and accurate data entry, even during repetitive scanning, warehousing, and inventory tasks.
Reliable DPM code capture
The optional DPM function enables the reading of direct part markings on components, tools, and industrial parts.
Uninterrupted battery replacement
The integrated 270 mAh backup battery keeps the device active during battery swaps, minimizing downtime in mobile workflows.
Rugged for daily use
The IP65-certified housing and drop resistance from up to 1.2 meters protect the X20 Mobile Computer in demanding warehouse, production, and logistics environments.
Flexible communication
4G, dual-band Wi-Fi, Bluetooth, and GNSS ensure reliable data transmission and positioning for mobile applications.
Product information
Technical details
The X20 Mobile Computer combines professional 1D/2D barcode scanning, NFC, and a physical 38-key keypad in a rugged mobile computer. This makes the device ideal for reliable data collection in warehousing, inventory management, production, logistics, inspection, and retail.
The scan engine optionally supports long-range barcode scanning up to 15 meters and the capture of direct part marking (DPM) codes. The integrated NFC reader processes transponders according to ISO/IEC 14443 A/B and ISO/IEC 15693, as well as MIFARE Classic, MIFARE DESFire, and FeliCa. The 4-inch capacitive touchscreen can be operated even with wet hands or gloves.
Android 14, an octa-core processor, and up to 6 GB of RAM ensure reliable mobile data processing. The swappable 6,200 mAh battery provides an operating time of more than eight hours. An integrated backup battery supports hot-swapping. The IP65-rated housing, drop resistance of up to 1.2 meters, and extended operating temperature range ensure reliable performance in demanding conditions.
Data collection 1D/2D barcodes and HF/NFC
Scanning range Optionally up to 15 m
NFC 13.56 MHz
Reading range under 5 cm
Display 4 inches
800 × 480 pixels
Operating system Android 14
Memory 4 GB RAM + 64 GB ROM
Optional: 6 GB RAM + 128 GB ROM
Operating time More than 8 hours
Battery capacity 6,200 mAh
Integrated 270 mAh backup battery
Interfaces USB Type-C / 4G / Wi-Fi / Bluetooth
Protection rating IP65
Drop-resistant up to 1.2 m
