ID INFO 4000
Access Terminal
ID INFO 4000
Versatile access terminal with touchscreen, RFID, and QR code technology for secure and comfortable control of doors, turnstiles, and access points.
.webp)
.webp)
Highlights
Why the ID INFO 4000 excels
Versatile Identification
RFID, QR, and NFC enable flexible access concepts in a single terminal.
Wide Range of Applications
Ideal for doors, turnstiles, and reception areas in companies and institutions.
Future-Proof Solution
Modern technology creates a strong foundation for today's and tomorrow's access concepts.
Flexible Integration
Ethernet and internal relay enable easy integration into existing systems.
Intuitive Operation
The touch display provides modern and user-friendly interaction.
Modern Design
The compact form factor integrates perfectly into modern entrance areas.
Product information
Technical details
The ID INFO 4000 is a modern touch terminal for professional access solutions that combines user-friendly operation with versatile identification technologies. Equipped with RFID, QR code scanning, and NFC peer-to-peer, the device is ideal for use at doors, turnstiles, reception areas, as well as in companies and institutions.
The high-resolution 3.33" IPS display ensures clear presentation and intuitive user guidance. Thanks to Ethernet, internal relay, and flexible integration options, the terminal can be easily incorporated into existing access and control systems.
TECHNICAL SPECIFICATIONS
Frequency 13.56 MHz
Operating voltage DC 9V - 15V
Power supply 293mA (Typical 12V Power Supply)
Power consumption 3.52W
RelayDC 30V/ 1A
Image sensor 480,000 pixel CMOS image sensor
Screen size3.33 inches | 8.46 cm
Maximum resolution800 x 600
Screen resolution320 x 480 IPS HD
TouchscreenCapacitive touch
Reading range15mil QR code: 22.5 ~ 129.06mm
Reading speed100ms per time (average), supports continuous reading
Volume<71dB, at a distance of 1 meter from the speaker
Decoding supportScreen code

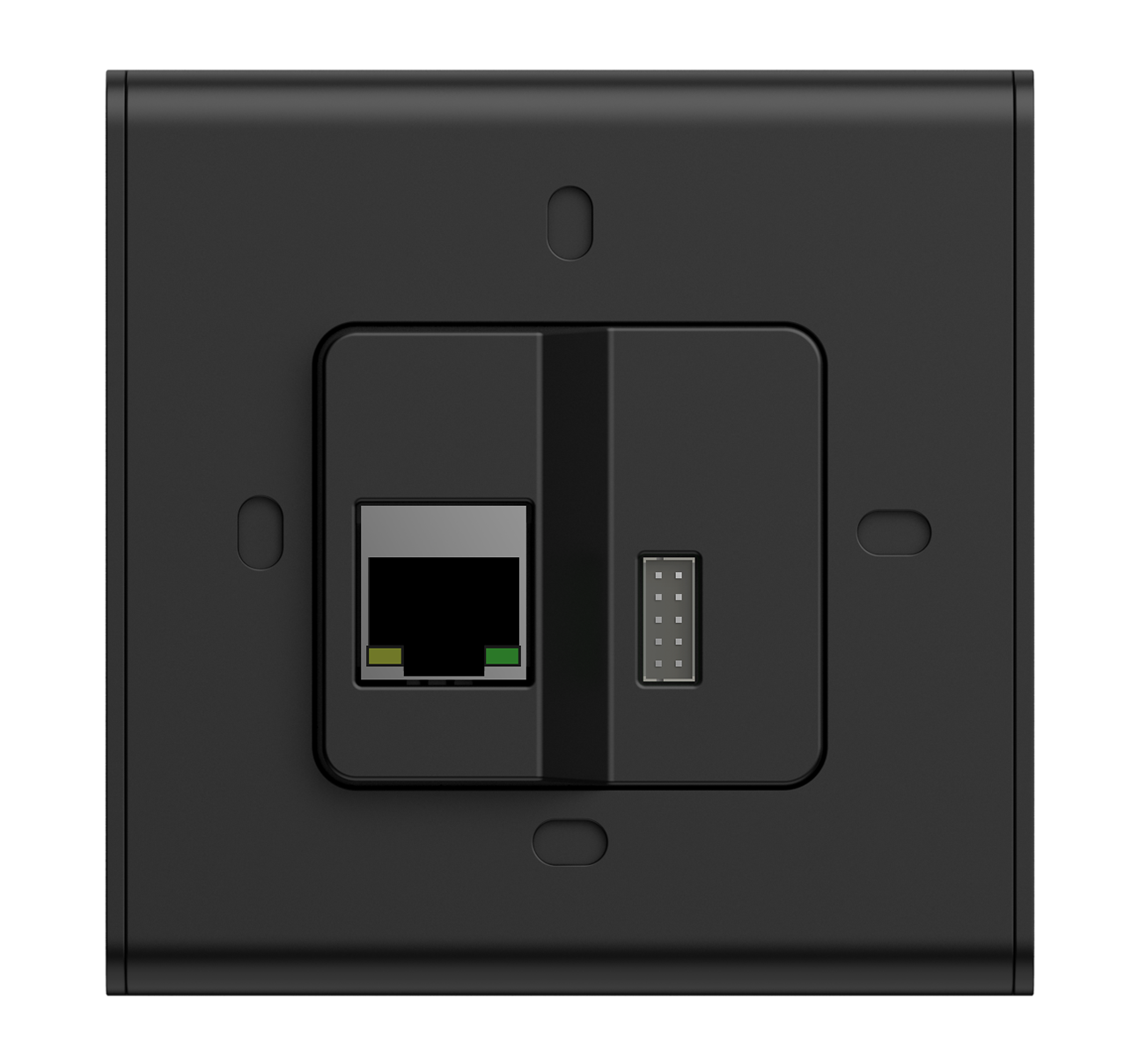

InterfaceRS485, Ethernet
Access control interfaceExit switch input,
Relay output
BluetoothBLE 5.1, communication range
up to 20 meters in an open environment
MECHANICAL SPECIFICATIONS
Dimensions90 x 90.3 x 27.4mm (H x W x D)
Window materialTempered glass
HousingPolycarbonate

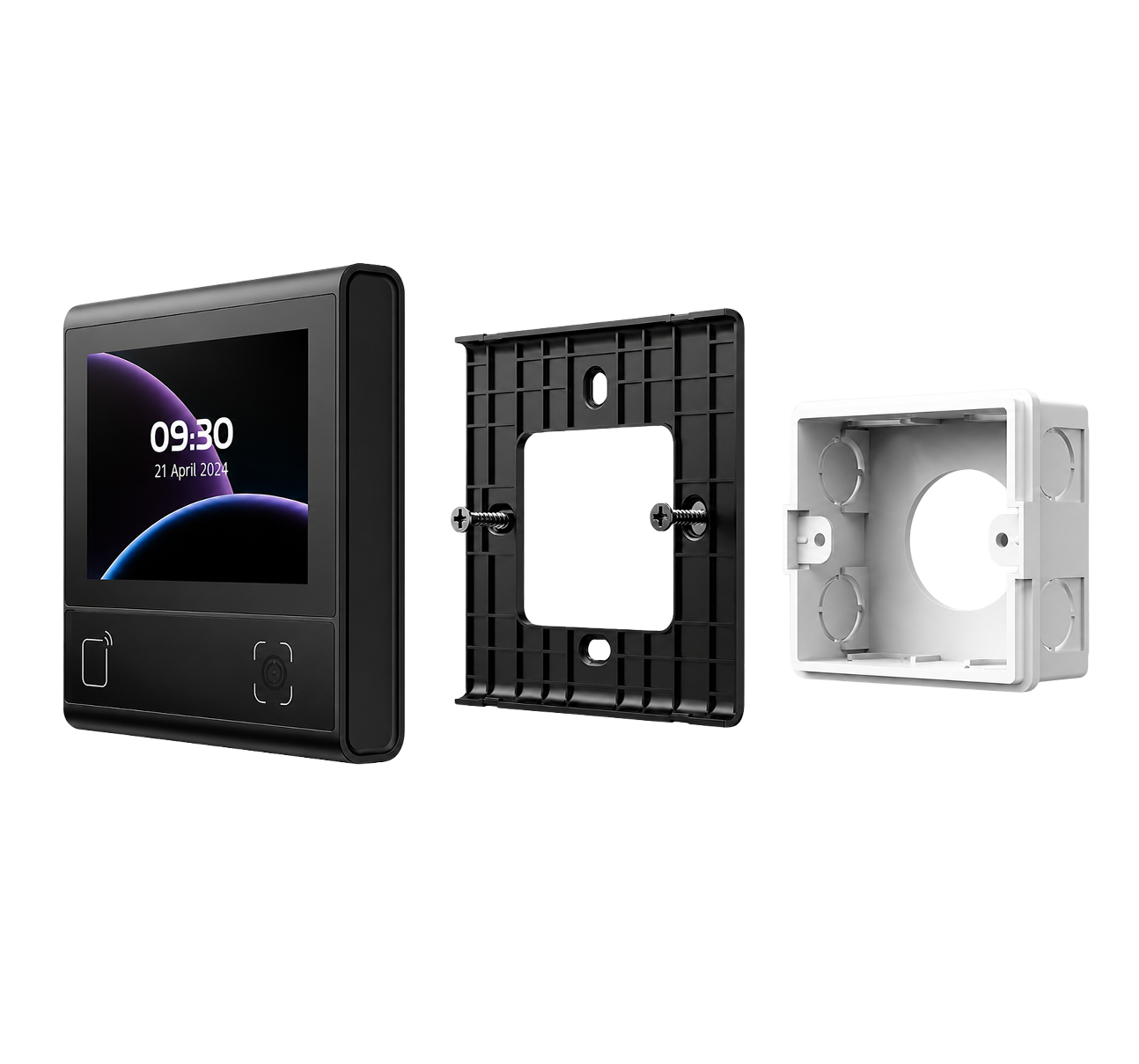

Installation methodsNon-86 box mount, 86 box mount
ENVIRONMENTAL SPECIFICATIONS
Operating temperature-20°C to 60°C
Storage temperature-40°C to 80°C
Humidity5 to 95%
SDK INFORMATION
SupportedOS Linux
SUPPORTED STANDARDS / TAGS
RFID HF | NFC 13.56 MHz
ISO 14443 A and compatibleRead/write:
MIFARE® Classic/1K/4K,
MIFARE Ultralight®/C,
MIFARE® DESFire®EV1/3,
MIFARE® Smart MX,
MIFARE® Plus S / X,
MIFARE® Pro X,
Fudan FM08,
NFC,
NTAG 213, 215, 216, 196, DNA
ISO 14443 B and compatibleeSRI4K,
SRIX4K,
AT88RF020,
66CL160S,
SR176
ISO 18000-3M3I-Code ILT-M
NFC Peer to PeerApp usage via NFC possible
1D/2D SPECIFICATIONS
Barcode type1D:
UPC / EAN,
Code128,
Code 39,
Code11,
Codabar,
Interleaved 2 of 5,
MSI
2D:
QR Code,
PDF417,
Micro QR Code,
Aztec Code,
MaxiCode
