NEO 2 Desktop Reader
Multi-frequency

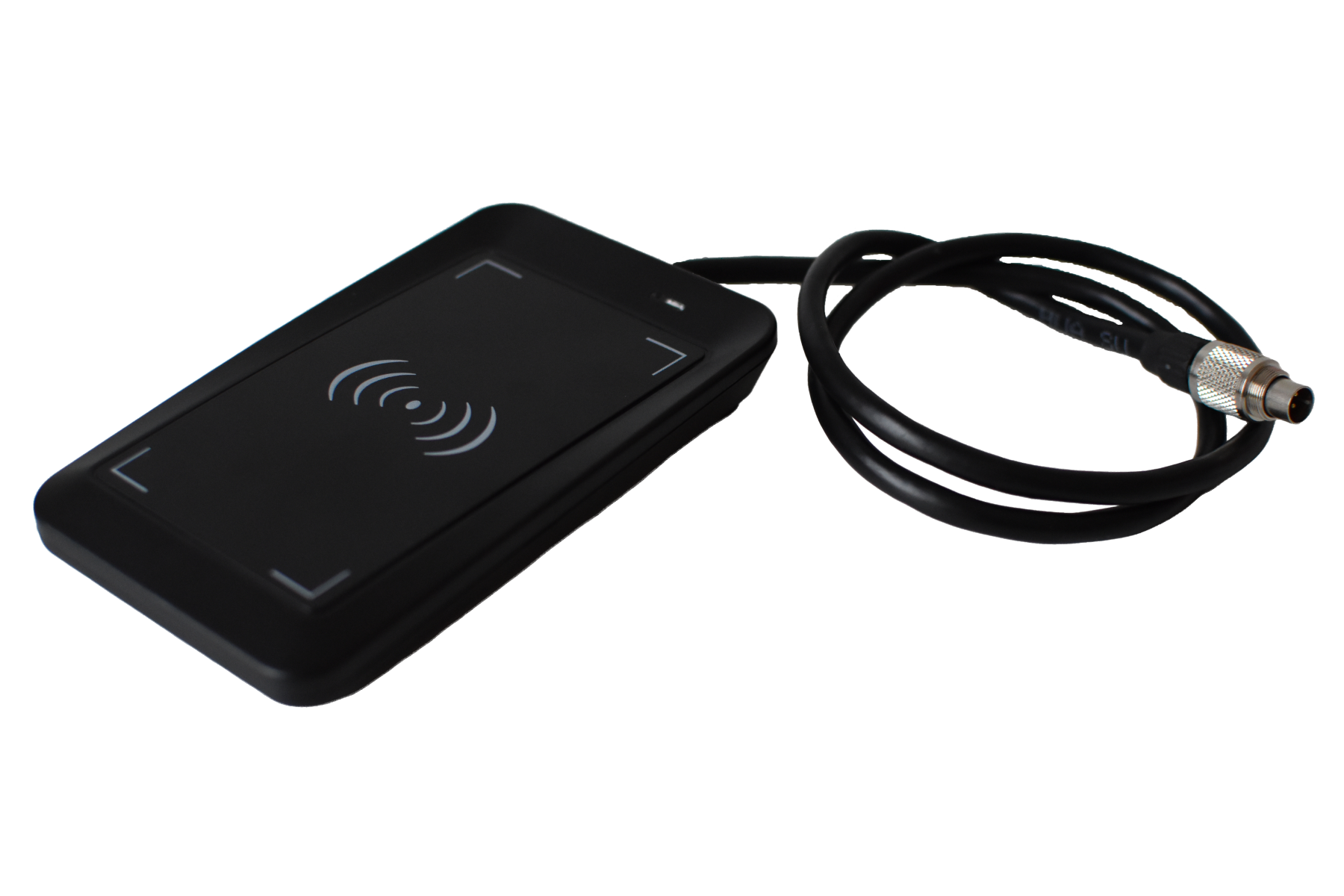

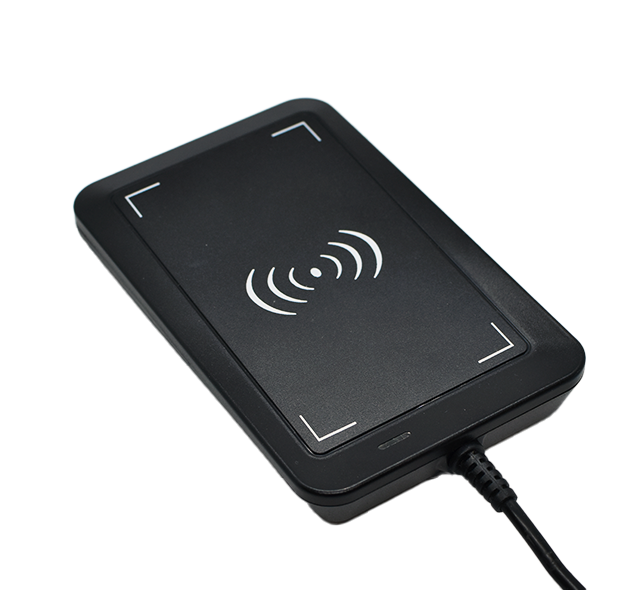

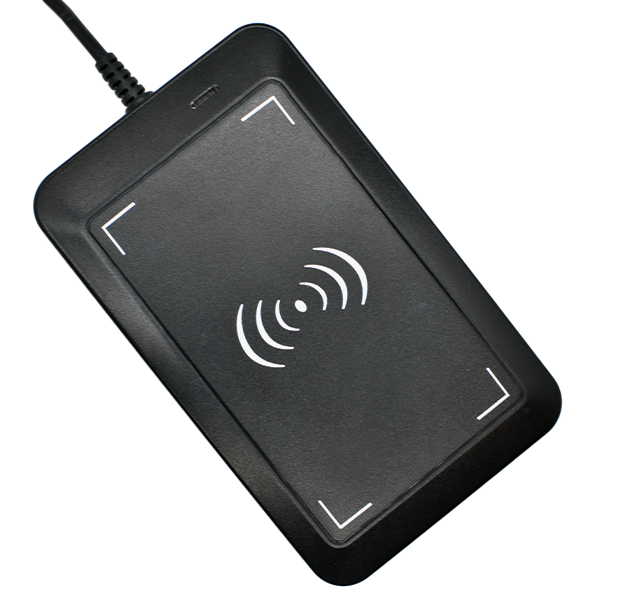

NEO 2 Desktop Reader
The NEO 2 is a modern desktop reader with an integrated antenna and USB Plug-and-Play for applications such as PC log-on, document management, and access control.
Highlights
More efficiency for your identification processes
Flexible RFID Selection
Supports UHF, LF, HF/NFC, and LEGIC for versatile RFID applications.
USB 2.0 Plug & Play
Quickly connected and ready for use with minimal integration effort.
HID & VCP
Data output flexibly configurable via keyboard emulation or virtual COM port.
15 cm Reading Range
Offers a reading range of up to 15 cm, depending on frequency and medium.
Usable across systems
Suitable for PC log-on, document management, and access control.
Ideal for access solutions
Quickly and reliably captures employee IDs, customer cards, and NFC-based cards.
Produktinformationen
Product Specifications
The Desktop Reader NEO 2 is a compact plug-and-play RFID reader with a USB 2.0 interface for versatile identification and authentication applications. Depending on the variant, the device supports UHF, LF, HF/NFC, or LEGIC and is suitable for applications such as Single Sign-On, document management, point of sale or access control.
Thanks to HID or VCP mode , the NEO 2 can be flexibly integrated into various system environments. Optionally, the device is also available with a PC/SC interface and thus supports reading various card media, such as employee IDs, customer cards, or NFC-based cards.
The NEO 2 features an integrated antenna and achieves a reading range of up to 15 cm, depending on the frequency. Combined with its easy integration into existing applications, it offers a powerful and reliable desktop solution for modern RFID processes.
ELECTRICAL SPECIFICATIONS
Power Supply USB VCP + HID
Power Consumption < 200 mA
Operating Frequency HF | NFC | LEGIC: 13.56 MHz
LF: 125 kHz
UHF: 868 MHz (ETSI), 902–928 MHz
Read Range UHF: 15 cm
HF / NFC: 5 cm
LEGIC: 5 cm LF: 5 cm
Standard UID Output ISO 14443A UID LSB
Antenna integrated

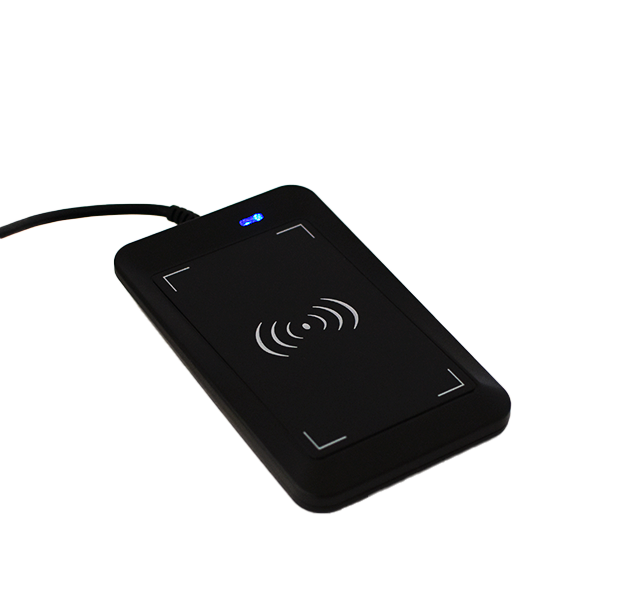

Status indicator 1 two-color LED, 1 buzzer
Interface USB 2.0 VCP/HID (Plug-and-Play),
CH340E Chip, PC/SC
Connections 120 cm long cable with USB Type-A connector
MECHANICAL SPECIFICATIONS
Dimensions 115 × 70 × 17 mm without USB cable
Weight 90 g including USB cable (length: 120 cm)
Casing ABS (black)
ENVIRONMENTAL CONDITIONS
Operating Temperature -20 °C to +70 °C
Storage Temperature -20 °C to +80 °C
Humidity up to 95% non-condensing
SUPPORTED STANDARDS / TAGS (RFID HF | NFC | LEGIC: 13.56 MHz)
ISO 14443 A and compatible Read/Write:
MIFARE® Classic/1K/4K, MIFARE Ultralight®/C,
MIFARE® DESFire® EV1/2, MIFARE® Smart MX,
MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Only read UID for all others
ISO14443A RFID tags
ISO 14443 B and compatible SRI4K, SRIX4K, AT88RF020,
66CL160S, SR176
ISO 15693 and compatible EM4135, EM4043, EM4x33,
EM4x35, I-Code SLI / SLIX, M24LR16/64,
TI Tag-it HF-I, SRF55Vxx (my-d vicinity)
ISO 18000-3M3 I-Code ILT-M
LEGIC RF Standard Full read/write access:
LEGIC Advant; LEGIC Prime Smartcard
Cards with Card-in-Card (CIC) technology,
LEGIC Advant Type AFS 4096-JP with loaded LEGIC
SM4200: Segmentation
SM4500: Segmentation & Initialization
Supported:
ISO 14443 A + B
ISO 15693 LEGIC RF Standard
Inside Secure Sony Felica
ST SR Series
RFID LF: 125 kHz
Read Only EM4200 and compatible
FDX-B Read Information
Read/Write Hitag-1, Hitag-S
SDK INFORMATION
Supported Operating Systems Windows XP, Vista, 7, 8, 8.1, 10
Supported Programming Languages Binary Command Protocol, VS2005 C++
Demo Software Windows
